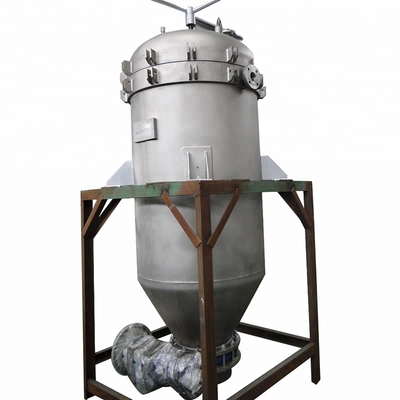

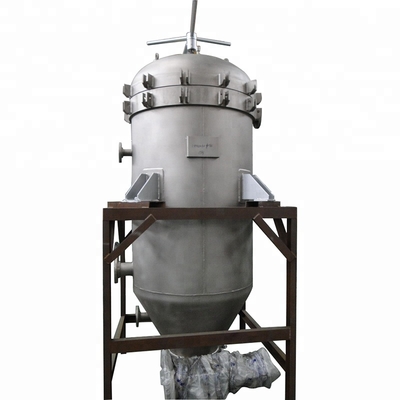

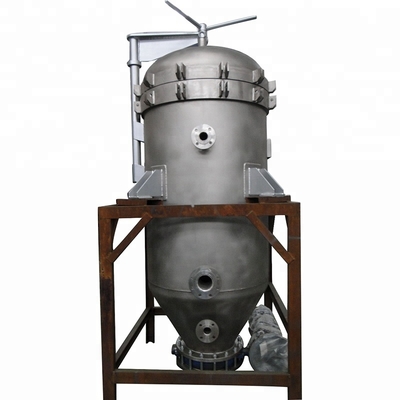

NYB Vertical Stainless Steel Plate Filter 12m2 Filtration Area 2-4T/H

The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

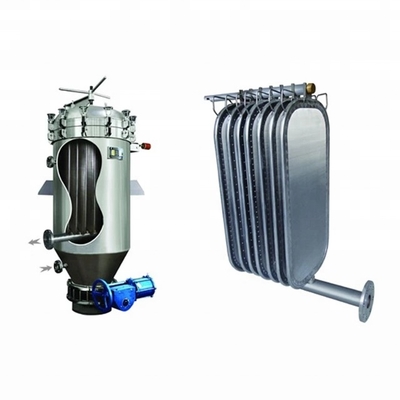

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, allowing for convenient dismantling and cleaning.

• No cloth or filter paper required, significantly reducing filtration costs
• Fully closed operation is environmentally friendly with no material loss
• Vibration residue falling reduces labor intensity and enables continuous operation
• Residue discharging through pneumatic valve minimizes worker labor intensity
• Capable of activated carbon filtering or bleaching filtering, completely replacing plate and frame filters

• 11 filter leaves provide 12 sqm filtration area
• Leaves surrounded by heavy box channel 1.8 mm material 316L
• Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)
• Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)

• DN 400 butterfly valve WAFER TYPE for dry cake discharge
• 1st quality butterfly valve with NH-S seat material (up to 150°C)
• Pneumatic actuator double acting type with 5.5 Bar air supply

• Inquiry and consulting support
• Sample testing support
• Factory visit arrangements

• Installation and operation training
• Overseas engineer support (customer responsible for abroad costs)
• Prompt response within 2 hours for reported issues
