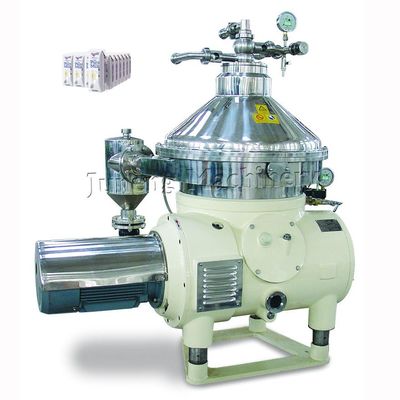

Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed

Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed

Ampliación de imagen :  Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed

Datos del producto:
Lugar de origen: Jiangsu, China
Nombre de la marca: Juneng
Certificación: CE / ISO
Pago y Envío Términos:
Cantidad de orden mínima: 1 set
Precio: $30,000-40,000 / set
Contacto

Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed

descripción
Voltaje: 220V / 380V / 460V Fuerza: 15000W
Dimensiones: 1800*1200*2030 mm Peso: 2000 kg
Capacidad: 3000-7000 L/H Velocidad de rotación: 6600 rpm
Material: SUS304/SUS316 Presión de entrada: 0,05 MPa
Presión de salida: 0,1-0,4 MPa Potencia del motor: 15 kW
Componentes centrales: PLC, rodamiento, motor Capacidad de tratamiento: 3000-7000 L/H
Nivel de ruido: Más bajo Materiales para tambores: SUS304/SUS316
Material base: Acero con goma de amortiguación
Resaltar:

SUS304/SUS316 Material Milk Cream Separator

,

3000-7000 L/H Capacity Disc Bowl Separator

,

6600 RPM Setting Speed 3 Phase Separator Machine

Disc Bowl Milk Cream 3 Phase Separator Machine
Product Application
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air from entering and maintaining product quality.
Milk products vary widely in composition, from simple milk with different fat contents to diverse dairy products including butter, cheese, quark, and yogurt.
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 0 Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 1 Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 2
Main Features
  • High rotating speed
  • Operating stability
  • Completely sealed inlet and outlet system
  • Lower noise operation
  • Perfect separation efficiency
Technical Specifications
Model Treatment capacity (L/H) Inlet Pressure (Mpa) Outlet pressure (Mpa) Motor power (Kw) Weight (Kg) Outline dimension (mm)
DHNZ204 1000-1500 0.05 0.1-0.2 4 520 810*850*1350
DHNZ360 1000-3000 0.05 0.1-0.3 7.5 1200 1530*1150*1500
DHNZ470 3000-7000 0.05 0.1-0.4 15 1600 1800*1200*2030
DHNZ550 5000-10000 0.05 0.1-0.4 22 2300 1950*1550*1960
Detailed Components
Disc
Brand: Juneng | Origin: China

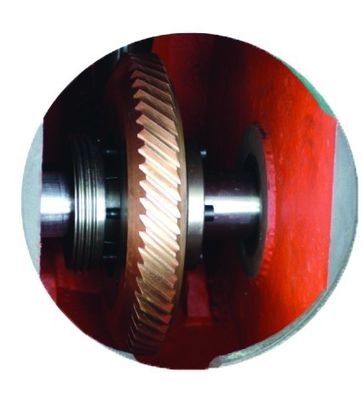

Shaft
Brand: Juneng | Origin: China
The vertical shaft transmits power and is equipped with speed step-up gear (small spiral gear) and high-speed rotating parts. The cross shaft transmits motor power to the vertical shaft and main drum components.
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 3 Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 4

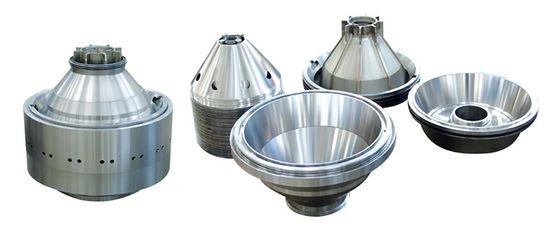

Drum
Brand: Juneng | Origin: China
The drum is the high-speed rotating component that performs material separation, serving as the heart of the separator.
Equipment Base
Brand: Juneng | Origin: China
The underframe supports the entire separator and connects to the base. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building.
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 5
Quality Testing & Inspection
  • Material Test Report
  • Magnetic Particle Examination
  • Nondestructive Examination
  • Liquid Penetrant Examination
  • Dynamic Balancing Test
  • Radiographic Examination
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 6 Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 7 Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 8
Our Services
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 9
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 10
After-Sales Service
  • Machine installation training
  • Operation training
  • Overseas engineer support
We maintain a dedicated division to support on-site services domestically and internationally. Upon order, our technical engineers will assist with equipment installation to ensure smooth operation and provide operator training.
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 11
Certifications
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 12
Exhibitions
We have participated in numerous international exhibitions including ACHEMA, AchemAsia 2019, ProFood Tech, 21st Interphex Week Japan, and both Spring and Autumn Canton Fairs.
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 13
Packing & Delivery
Industrial Milk Cream Separator with SUS304/SUS316 Material 3000-7000 L/H Capacity and 6600 RPM Setting Speed 14
Packaging Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Standard packaging uses wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. For tight containers, we use PE film or accommodate special customer packaging requests.
